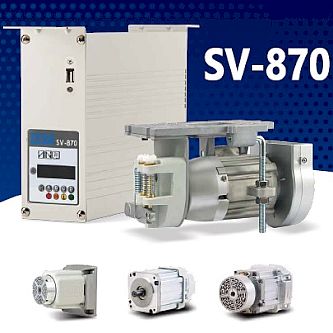

Energy Saving Servo Motor for
Industrial Sewing Machine
SV-870


1. Economy/Low cost servo motor
2. Control box size minimized & weight reduced.
3. Compatible for Direct drive and belt type For sewing machine.




SPECIFICATION 規格

SV-870

SV-870 D.D
Input Power Voltage 1ψ, AC 200~240V 1ψ, AC 200~240V
External LED Output(DC12V) v v
Motor Type Belt type motor Direct drive motor
Motor Rated Output Power 450/550/ 650W 450/500/550/ 650W
Motor Rated Speed 3500/5000 rpm 4200/6000/7000 rpm
Needle Up/Down v v
Max. Speed Setting v v
Soft Start v v
Reverse After Thread Trimming v v
One Shot Positioning (Fast Positioning) v v
Diagnostic Mode (Inspect I/O Condition) v v
ERROR History Mode (Record Previous 6 Times) v v
Connect Standing Operation Pedals (PK-71, PK-81) v v
Connect External Operation Panel(C12) v v
Input Ports No.(Accroding to requirements) 4 4
Output Ports No. (Accroding to requirements) 4 4
