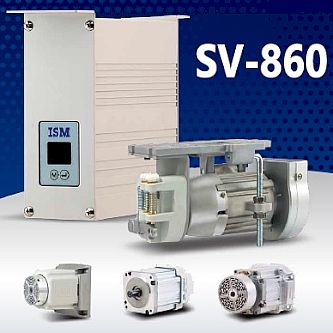

Servo Motor for
Industrial Sewing Machine
SV-860


1. Economy/Low cost servo motor
2. Control box size minimized & weight reduced.
3. Compatible with many type of sewing machine.




SPECIFICATION 規格

SV-860A

SV-860E

SV-860M

1.Input Power Voltage 1ψ, AC 200~240V
2.Motor Rated Output Power 350W ~ 650W
3.Motor Rated Speed 3500~7000 rpm
4.External LED Output(DC12V) v
5.Needle Up/Down v
6.Max. Speed Setting v
7.Soft Start v
8.Reverse After Thread Trimming v
9.One Shot Positioning (Fast Positioning) v
10.Diagnostic Mode (Inspect I/O Condition) v
11.ERROR History Mode (Record Previous 6 Times) v
12.Connect Standing Operation Pedals (PK-71, PK-81) v
13.Connect External Operation Panel(C18) v
14.Connect Manual Pulse Generator v
15.Built-in transmissive sensor circuit None None v
16.Input Ports No.(Accroding to requirements) 5 5 5
17.Output Ports No. (Accroding to requirements) 5 5 5
1)For Cylinder, DC24V / 100mA 5 5 5
2)For Solenoid, DC24V / 9A / 100ms 5 5 5
