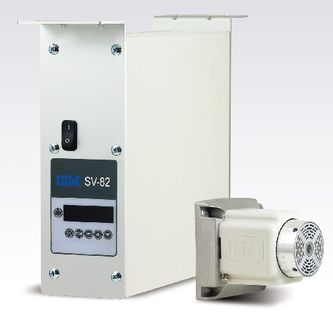

Servo Motor for
Industrial Sewing Machine
SV-82


1. Suitable for overlock sewing machine.
2. Compatible with many type of sewing machine.

.




SPECIFICATION
FUNCTION Value
Input Voltage Range 1ψ: 220V ± 10%
Motor Output Power 350/650W
Motor Rated Speed 7000/3500 RPM
Pulley Size Range 65-85mm
External LED Socket(DC12V) Y
Needle Up/Down Positioning Y
Max. Speed Adjustment Y
Soft Start Y
Target sitiching Y
Reverse After Thread Trimming Y
One Shot Position(Fast positioning) Y
FET Over Current Protection Y
Material Counter Function Y
Diagnostic Mode to Inspect I/O Condition Y
Error History Mode(Record Previous 6 times) Y
Edge Sensor Port 2
Input Port(By customers requirement) 8

Output Port(By customers requirement)

For cylinder only. DC24V/100mA for each cylinder.

5
Standing Operation Pedals(PK70/PK71) Option

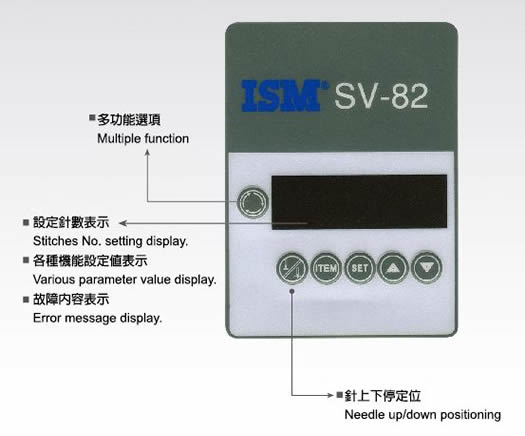

sv82panel
